Upper Woodlawn Drainage Project, COSA #40-00428

PROJECT NAME:  Upper Woodlawn Drainage Project, COSA #40-00428 Transportation & Capital Improvements Department

YEAR OF PROJECT: 2013

GGC ENGINEER’S ROLE: Civil Engineering Design Services

PROJECT OWNER: City of San Antonio – Transportation & Capital Improvements (TCI)

about this project

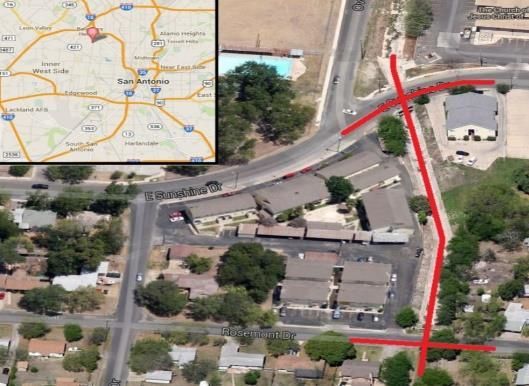

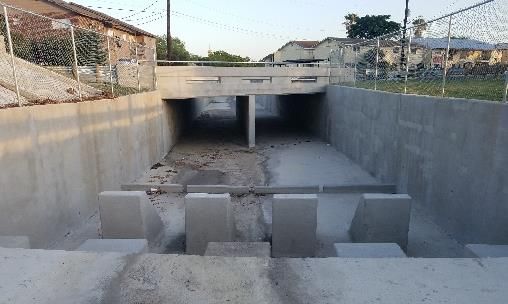

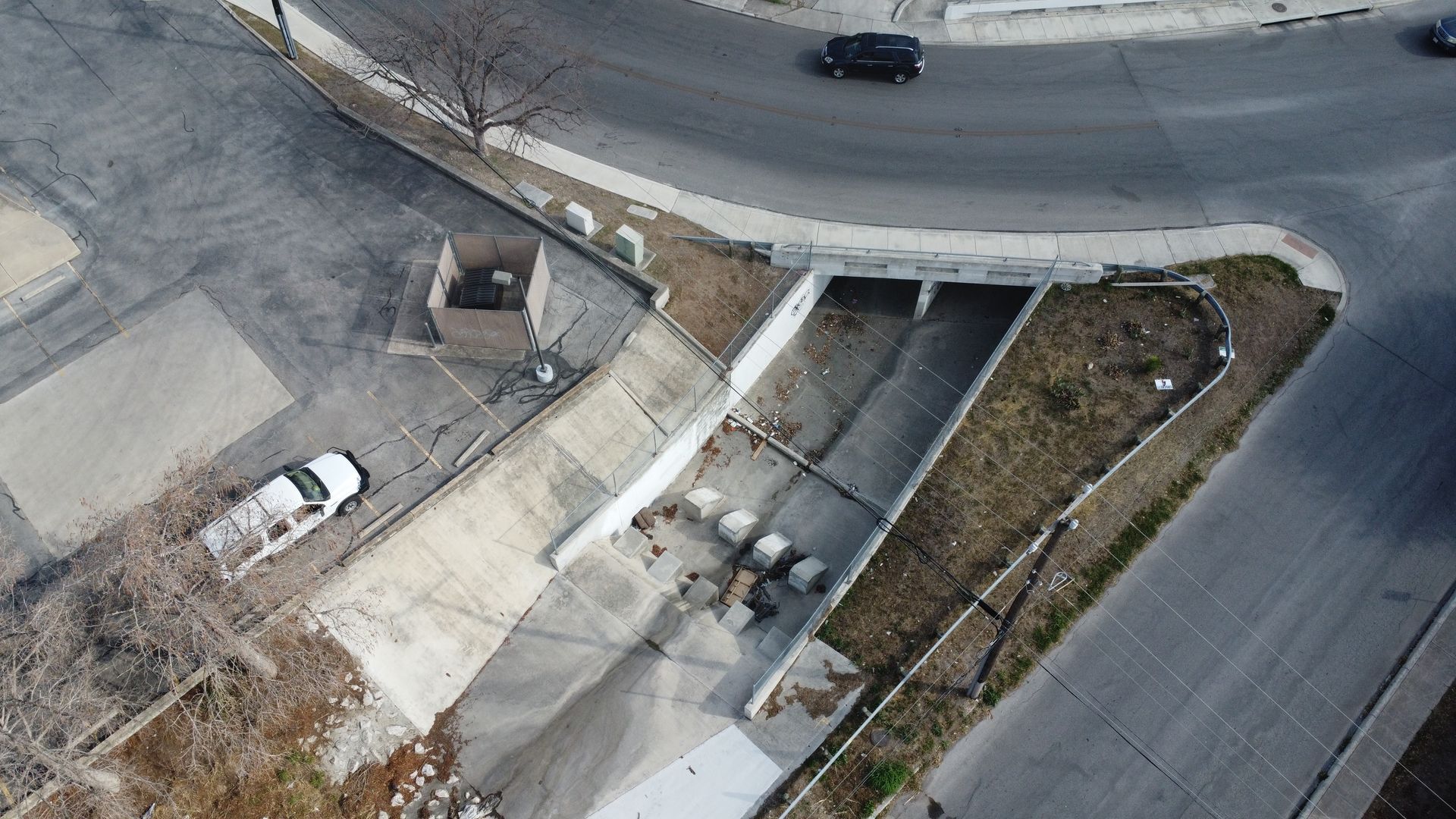

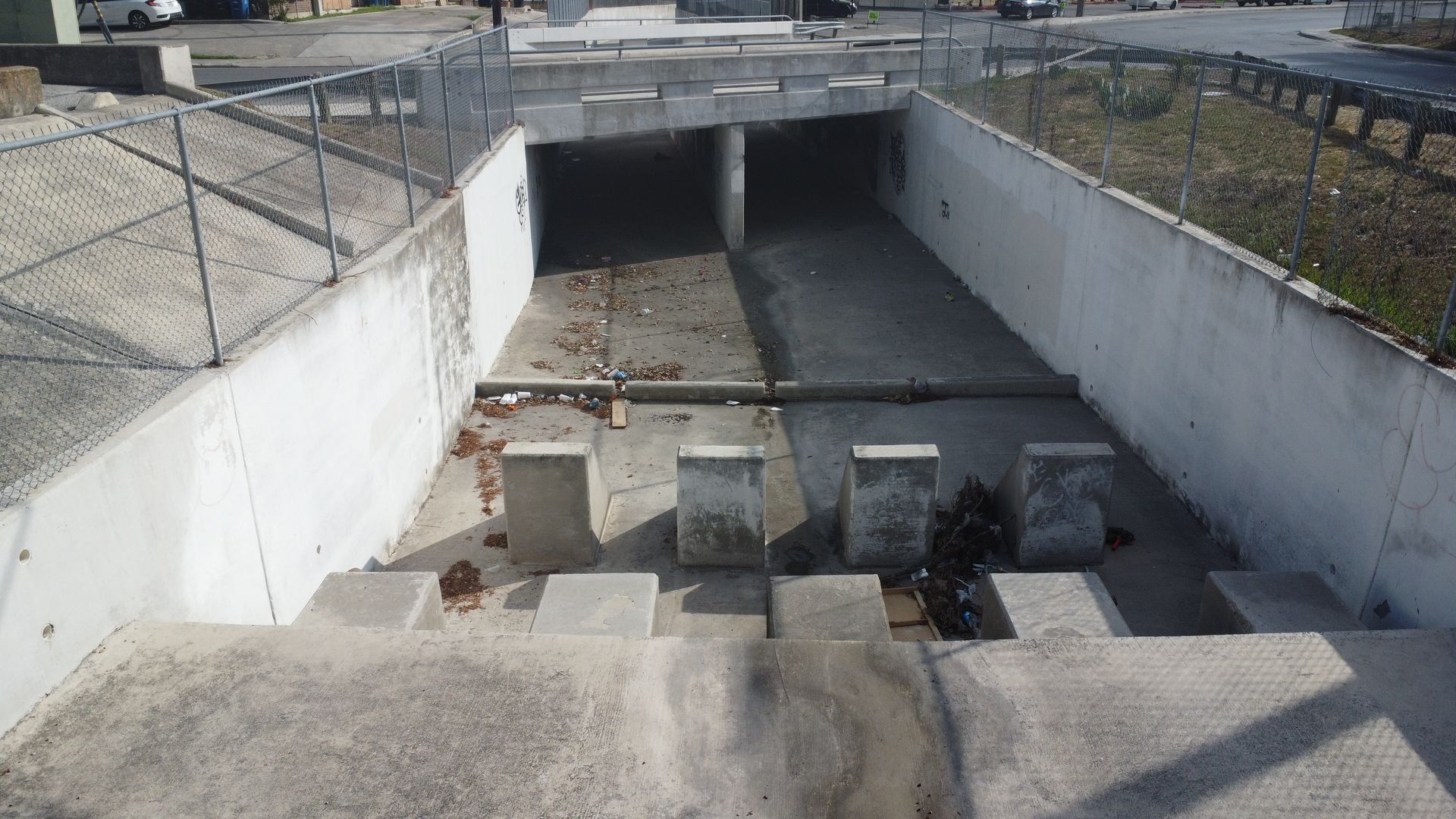

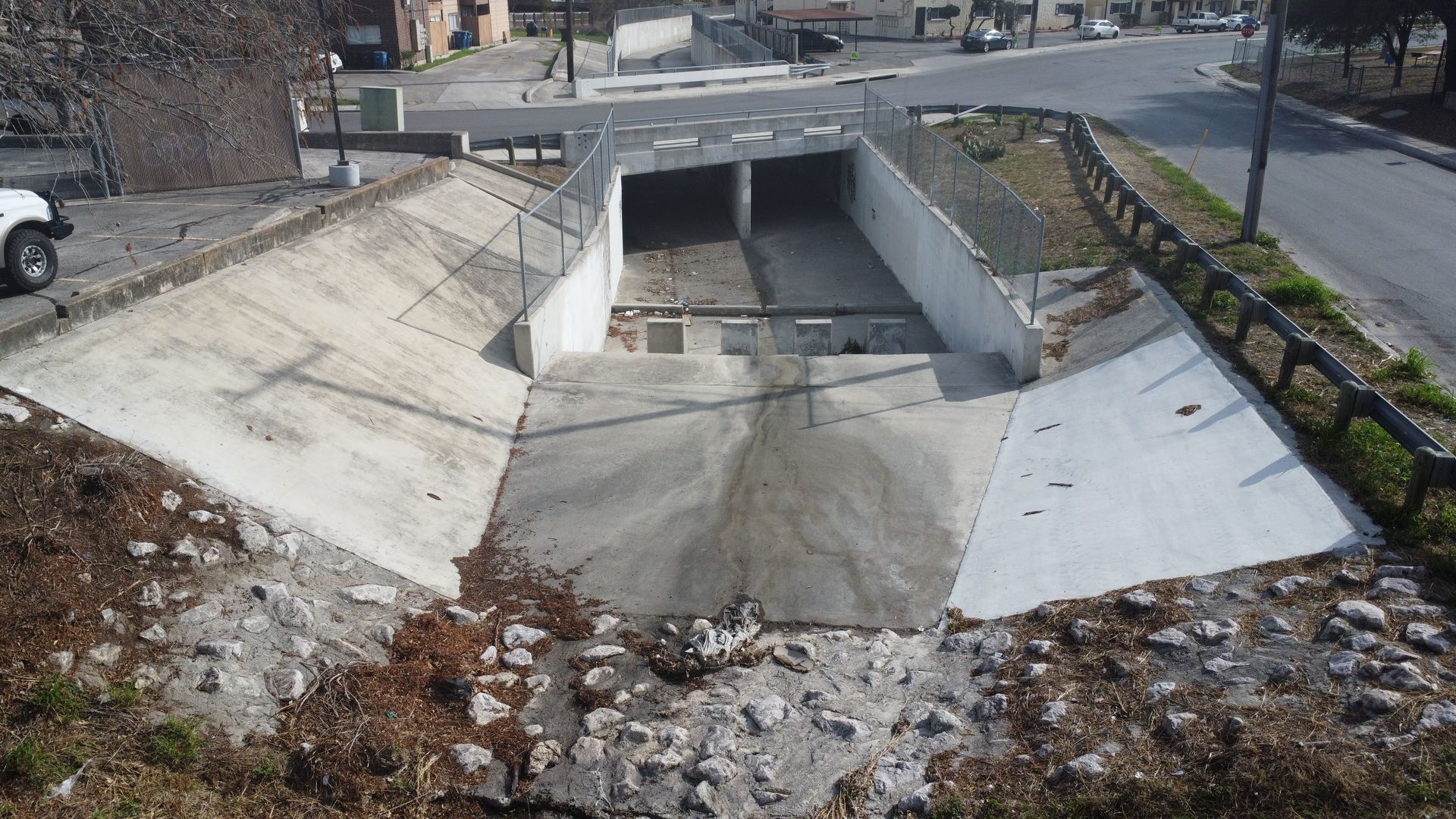

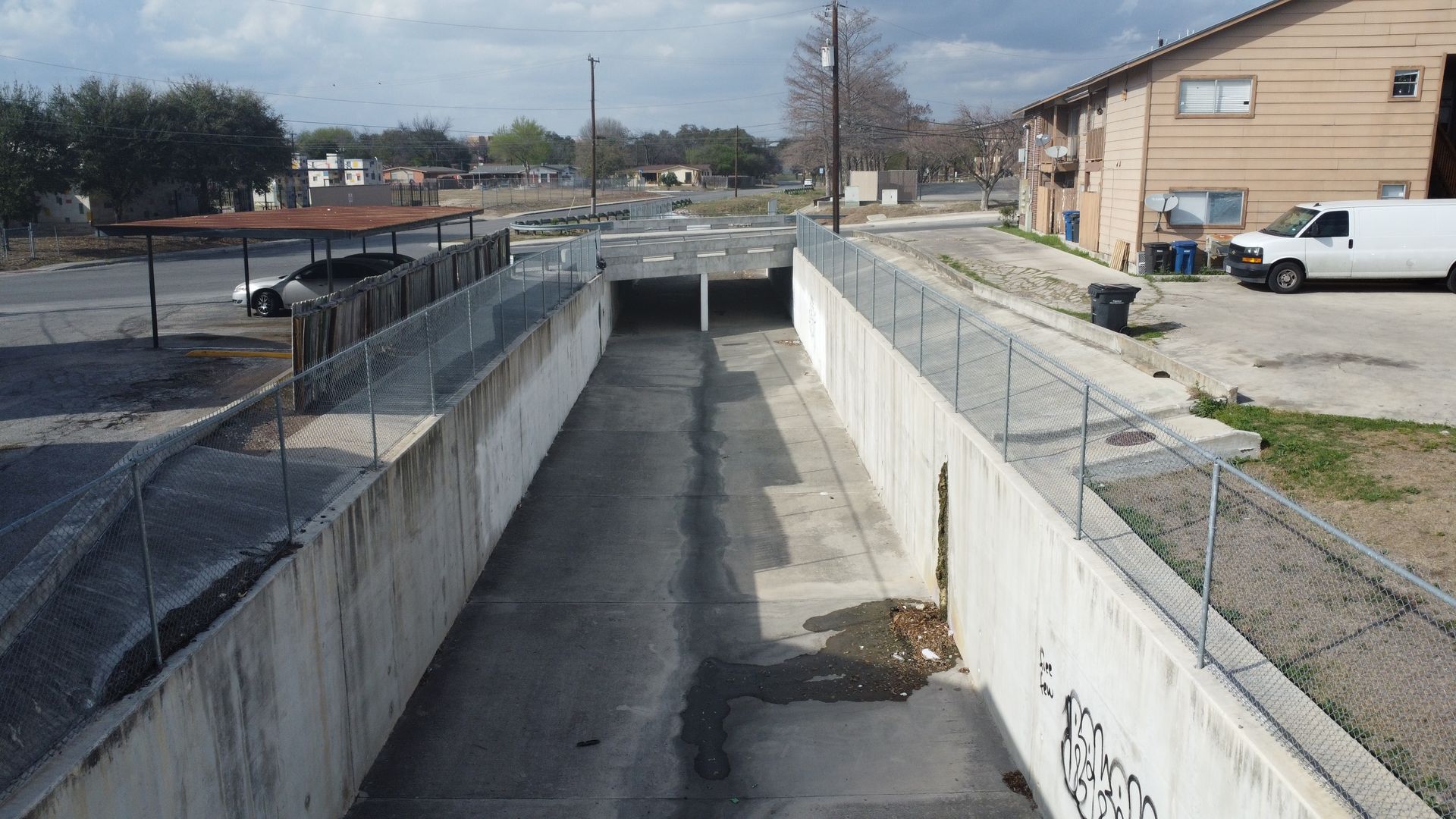

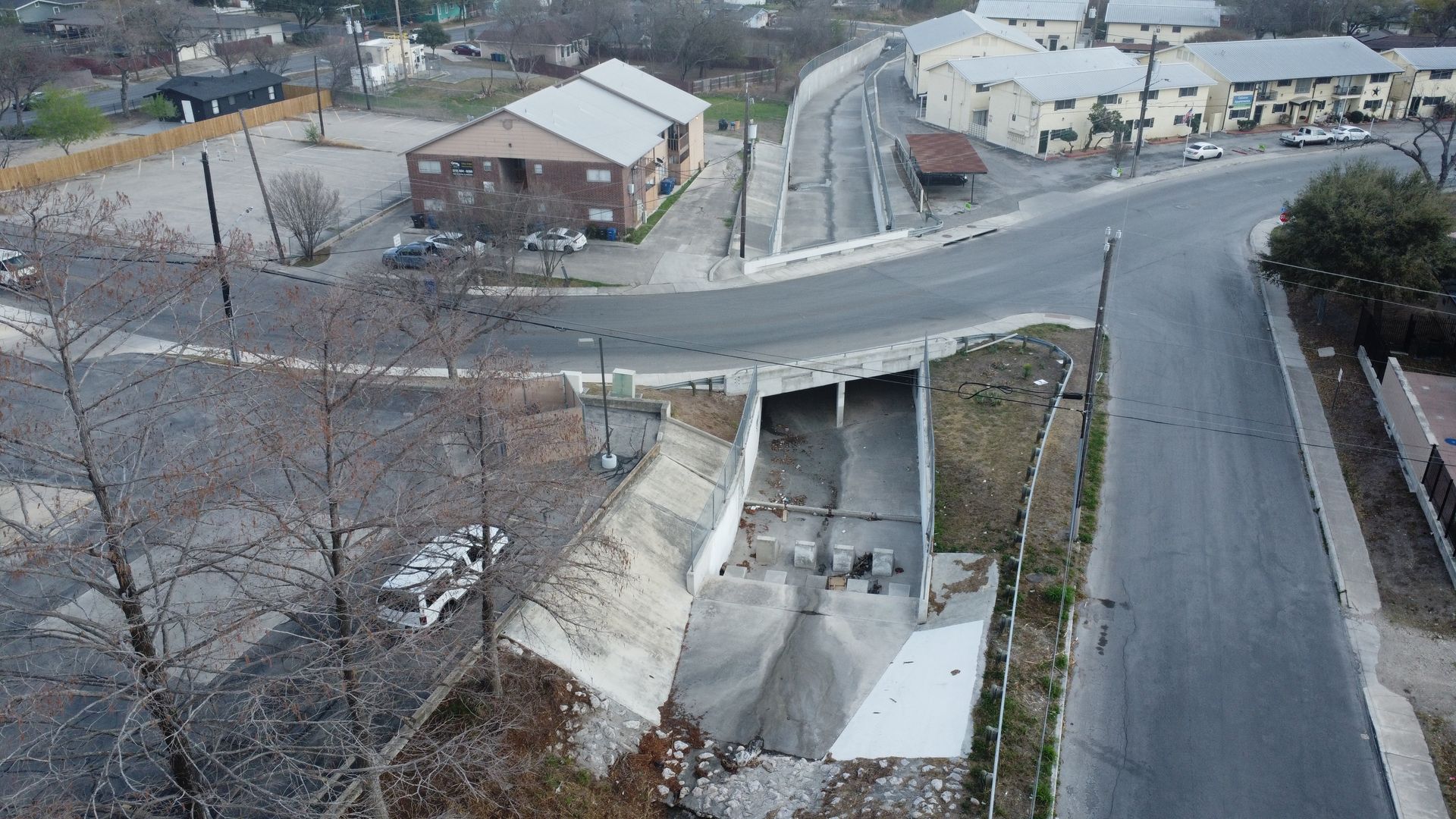

As the project engineer, Mr. Hinojosa was responsible for the design and construction administration of approximately 2,500 L.F. of concrete channel improvements and box culvert crossings. The crossings consisted of two (2) 14’x12' MBCs and two (2) 12'x12' MBCs. The project included the relocation of a 12-inch steel water main along E. Sunshine Dr., adjustment of a 15-inch sanitary sewer main along Rosemont Dr., and the realignment of an 8-inch Sanitary Sewer Main parallel to the proposed channel. Mr. Hinojosa prepared the PS&E package for construction.
